Model

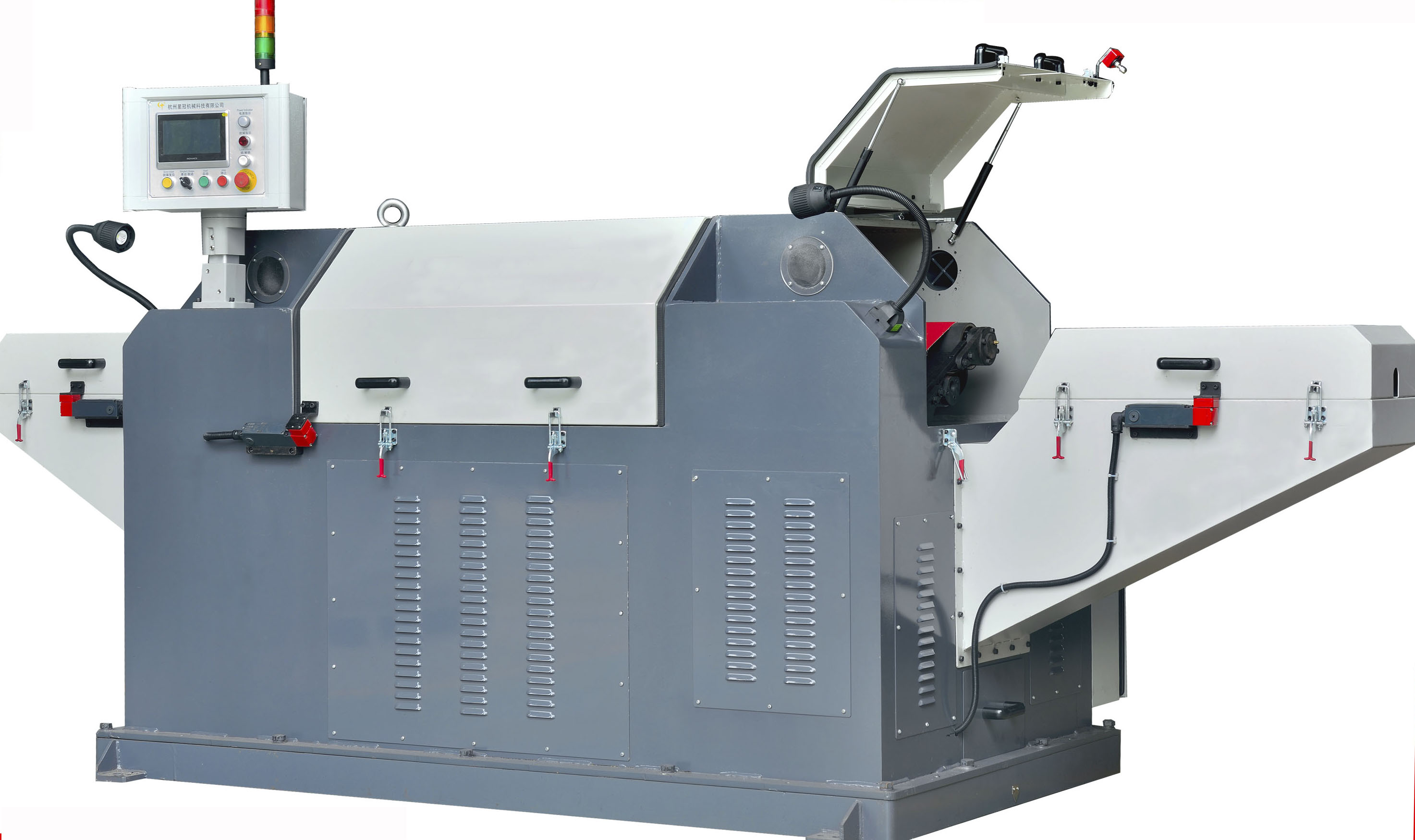

SDJ—1310-C belt grinding machine

Material to treat

Metal wire rod

Function

To remove steel scale on the surface of wire rod

Wire Dia. range

Φ4.0mm-Φ13.0mm

Max. incoming speed

For wire rod

120m/min

Tensile strength

200mpa—2500mpa

Mechanical Descaling device

4 descaling rollers for two directions

To be provided by final user

Max. rotation speed

for belt

1000rpm

Main shaft Motor power

15KW VFD motor

Belt Motor

4KW gear motor

Dust collection

Dust absorption device (optional)

Wire direction

From left to right

Wire height from ground

900mm

Electrical cabinet

IP54

Control system

Working separately or with drawing machine

Motor

VFD motor with HENGDA brand

Low voltage parts

SCHNEIDER

Inverter

INNOVANCE

Occupation

3262×1500mm

Electrical power supply for all motors

415V, 50HZ

Power and compressed air supply

To be provided by final user
