Item |

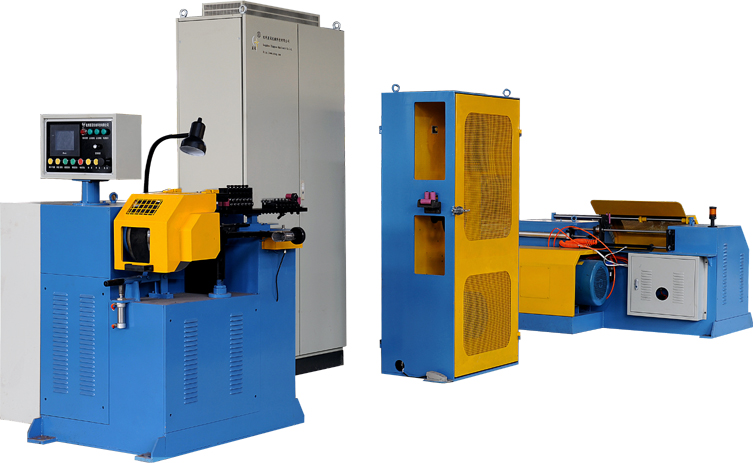

DS-3D Layer Winding Machine |
|
Usage |
For the precision layer winding of metal wires, such as CO2 welding wire, aluminum alloy wires, copper alloys wires, stainless wires etc. |
|
Wire Dia. |
Φ0.8mm-Φ2.0mm |
|
Packing type |
for plastic spool or wire spool（K300，BS300）or spool-less coil |
|
Max. speed |
23m/s |
|
Take-up unit
|
|
|
Take-up motor |
5.5KW motor with variable frequency drive |
|
Take-up fixture |
SD300 plastic spool, for 15KG packing |
|
|
D100, D200 plastic spool and K300, BS300 wire spool fixture |
|
Straightening |
26pcs killing rollers with V type groove |
|
Wire Traverse |
controlled by servo motor 0.75KW |
|
Weighting |
Automatic weighting, automatic stop for target weight |
|
Data Input |
By touch screen with DELTA brand |
|
Pay-off unit
|
|
|
Pay-off motor |
18.5KW(for D630 metal spool）with variable frequency drive 37KW（for D800 metal spool）with variable frequency drive |
|
Pay-off spool |
Provided by final user, and confirmed by two parts |
|
Metal spool clamp |
By pneumatic cylinder device |
|
Plate down and up |
By pneumatic cylinder device |
|
Wire Traverse during unwinding |
By pneumatic cylinder device |
|
Tension control unit
|
|
|
Tension control |
Universal tension control adjustable by pneumatic element feedback by displacement sensor |
|
Weighting |
By encoder calculated by round number of tension wheel |
|
Tension wheel |
Engineering Nylon with wheel diameter 240mm |
|
Electrical cabinet |
|
|
PLC |
DELTA |
|
Inverter |
DELTA |
|
Servo Motor and Drive |
DELTA |
|
Low voltage Product |
SCHNEIDER |
|
Certificate |
CE certificate |
